Multifunctional High Performance Industrial Ultraviolet UV Laser Marking System
The pharmaceutical, medical device, and cosmetic industries can utilize UV laser marking machines to deter tampering and counterfeiting, helping to ensure lifetime brand protection and traceability.
Why choose a UV laser?
Safety and integrity for sensitive and critical materials
Hygiene and sterility for UV laser marked medical plastics
Filigree and high-contrast markings with 355 nm and small beam diameter
Solvent and additive-free marking of plastics
Low-maintenance due to an efficient air-cooled design and long-lasting optical components
360° Arc Compensation Software enables consistent high-quality marks on rotational devices, virtually eliminating distortion

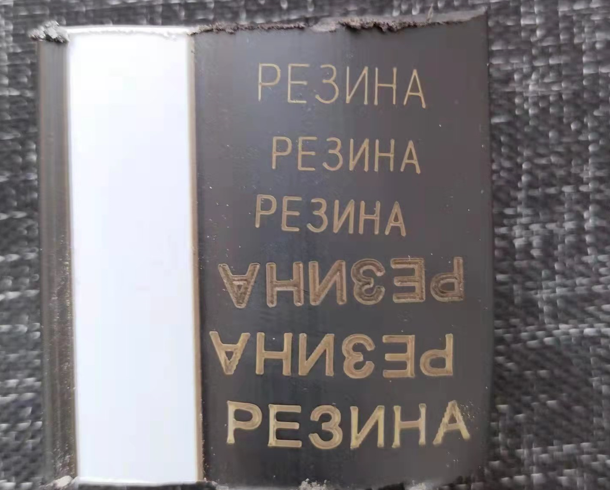

What materials can be marked by UV laser machines?
HDPE, LDPE
Other high-density plastics
Synthetic fiber materials
Acrylic
Glass
Silicone
PE and PPE
Automotive parts
Unique Design
Compact design with stainless steel, anodized aluminum materials.
Intelligent
RS-232/422, Ethernet (TCP/IP), Synchronizer and electric eye trigger input interfaces, etc.
Performance
Stable, fast printing, and good running modes.
Safety
separate switches which can control the power on and off independently.
Fonts
All windows fonts, all barcodes, support varieties of formats of graphics files.
Well Printing
Well-proportioned thickness, clear and complete markings; not offset, no font skew & double shadow.
Laser Type
﹡Ultra-violet laser, λ=355nm, UV-YAG
﹡MTBF>=20,000 hours
| Model | F2003 | F2005 | F2007 | F2010 |
| Power | 3W | 5W | 7W | 10W |
| Line Speed* | 10000mm/s |
Printing Features
﹡Characters Height: 0.4mm to 70mm
﹡Number of Lines: Limited only by character height and allowable print area
﹡Marking area :110mm*100mm to 650mm*650mm
﹡Minimum line width: 0.01mm
Marking Data
﹡Serial number, text, date, time, fonts, etc.
﹡Multi - language support, user - defined fonts, counter, shift code
﹡Codes Support: Barcode, QR-code, Code128, Code 39, Data-Matrix Code,
﹡Document Type: BMP/DXF/HPGL/JPEG
﹡Graphic Element: Points, lines, arcs, rectangles,
polygons, ellipses, circles
Communication Interface
﹡Rs-232, Ethernet (10/100 Mbit), USB port, SD card
﹡I/O: PN/PNP/24V – detector
﹡Speed Detection: Encoder or synchronizing signal
﹡Input Signal: Start, stop, interlock
﹡Output Signal: Status indication, cooling device control, machine remote control.
Other Characteristics
﹡Outlooking: Stainless steel support structure,
anodized alumina.
﹡Power: 90-264V AC,47-63Hz,800W
﹡Cooling system: Air cooling
﹡Operation Environment: -6-45℃,10%-90%RH, non-condensing
﹡Ip Rating: IP54;
Operation Interface
﹡10.1inch touch screen, QWERTY or AZERTY virtual keyboard, quick icon wizard operations, online help
Accessary
﹡Fume extractors
﹡Complete stand bracket
﹡Encoder & Photocell
﹡Alarm
